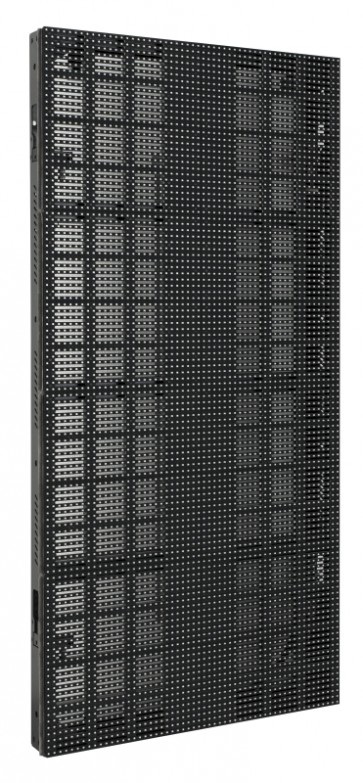

The Pixelscreen E8 is the latest addition in the popular E-series LED screens. It offers a excellent price-performance ratio. Each Pixelscreen is 500 x 1000mm and are easy to rig by the dedicated riggingbars. Due to the fact that the screensize is exactly the same as the E6 creative setups and combinations are possible and easy to achieve. The Pixelscreen E8 also can be rigged in 5 different angle positions (15?, 7.5?, 0?, -7.5?, -15?). It's lightweight structure allows you to rig your screen in nearly any venue as well makes assembling easy and efficient.
Specifikationer
Detaljer
• LED lightsource: SMD3528 RGB white face
• Luminance: 1500 Nits
• Transparancy: 20%
• Refresh rate: Variable <1000Hz
• Cabinet area:
• Cabinet ratio: 1:2
• Pixels per cabinet: 56 x 112
• Pixel density:
• Pixel pitch: 8.9mm
• Viewing angle (HxV): 140° x 140°
• Control system: LINSN LED Studio
• Input Voltage: AC200-240V 50-60Hz
• Max Power Consumption: 400 W /m²
• Average Power Consumption: 140 W /m²
• Operatin Temperature: ?10??45?
• IP Rating: IP-20 (indoor)
• Data connection: XHD
• Power connection: XHD
• Cooling: Convection
• Mechanical connection: Fastlock system
• Maximum hanging height: 10 modules (10m)
• Cabinet size: W500 x H1000 x D60 mm
• Cabinet weight: 9,5 Kg
• Power and Data Link Cables Included
• Luminance: 1500 Nits
• Transparancy: 20%
• Refresh rate: Variable <1000Hz
• Cabinet area:
• Cabinet ratio: 1:2
• Pixels per cabinet: 56 x 112
• Pixel density:
• Pixel pitch: 8.9mm
• Viewing angle (HxV): 140° x 140°
• Control system: LINSN LED Studio
• Input Voltage: AC200-240V 50-60Hz
• Max Power Consumption: 400 W /m²
• Average Power Consumption: 140 W /m²
• Operatin Temperature: ?10??45?
• IP Rating: IP-20 (indoor)
• Data connection: XHD
• Power connection: XHD
• Cooling: Convection
• Mechanical connection: Fastlock system
• Maximum hanging height: 10 modules (10m)
• Cabinet size: W500 x H1000 x D60 mm
• Cabinet weight: 9,5 Kg
• Power and Data Link Cables Included
